The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to use and student-friendly, which means able to withstand extensive use and rough handling
The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives
Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon
Highlights
- Monocular, binocular and trinocular models with WF10x/18 mm eyepiece(s)
- Models with integrated 5.0 MP CMOS camera
- Models for polarization applications
- Provided with APL (Anti-bacterial Protection Layer)
- Revolving nosepiece with four achromatic objectives
- Models with integrated mechanical stage available
- Coaxial coarse and fine adjustments with rack stop
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- 1 W LED illumination with integrated power supply
- 1 W NeoLED™ illumination with rechargeable batteries and external 100-240 Vac mains/charger adapter
- Ergonomic stand
| MODELS | Monocular | Binocular | Trinocular | S60x objective | S100x objective | Mechanical X-Y Stage (1) | LED | NeoLED | Batteries (2) | Polarization (3) | |
| EC.1001 | • | • |  |
||||||||

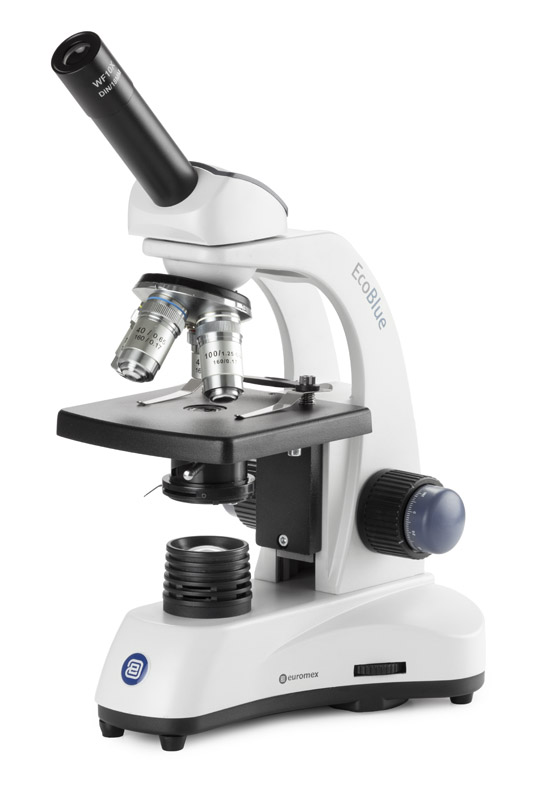

| EC.1101 | • | • | • |  |
|||||||

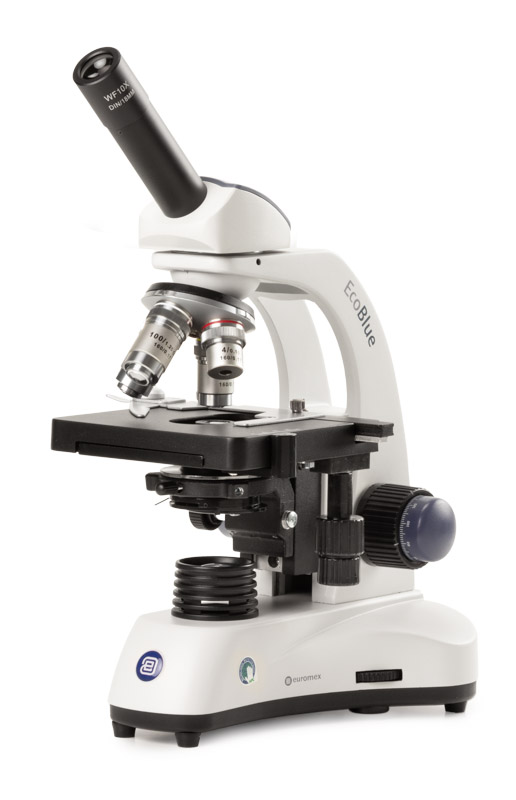

| EC.1151 | • | • | • | • | • |  |
|||||

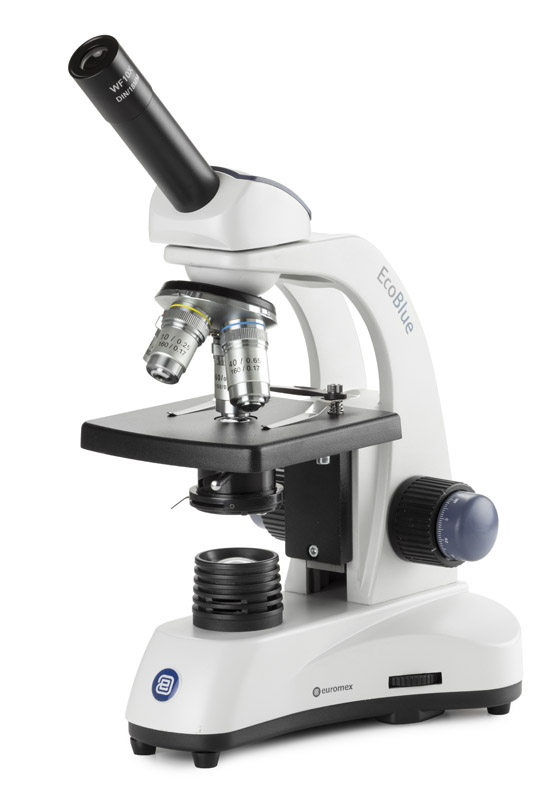

| EC.1601 | • | • | • |  |
|||||||
| EC.1051 | • | • | • | • |  |
||||||

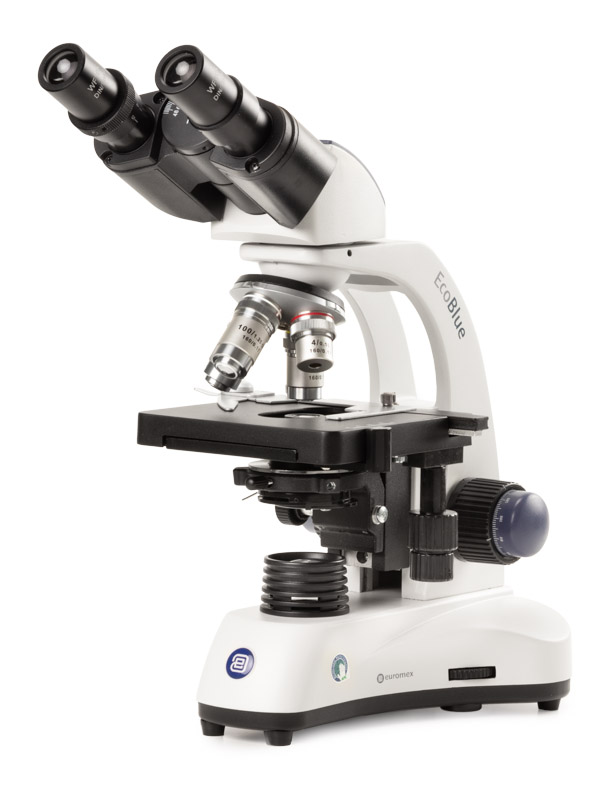

| EC.1152 | • | • | • | • | • |  |
|||||
| EC.1652 | • | • | • | • | • |  |
|||||
| EC.1153 | • | • | • | • | • |  |
|||||
| EC.1653 | • | • | • | • | • |  |
|||||
| EC.1001‑P‑HLED | • | (3) | • |  |
|||||||
| EC.1601‑P‑HLED | • | • | (3) | • |  |
||||||

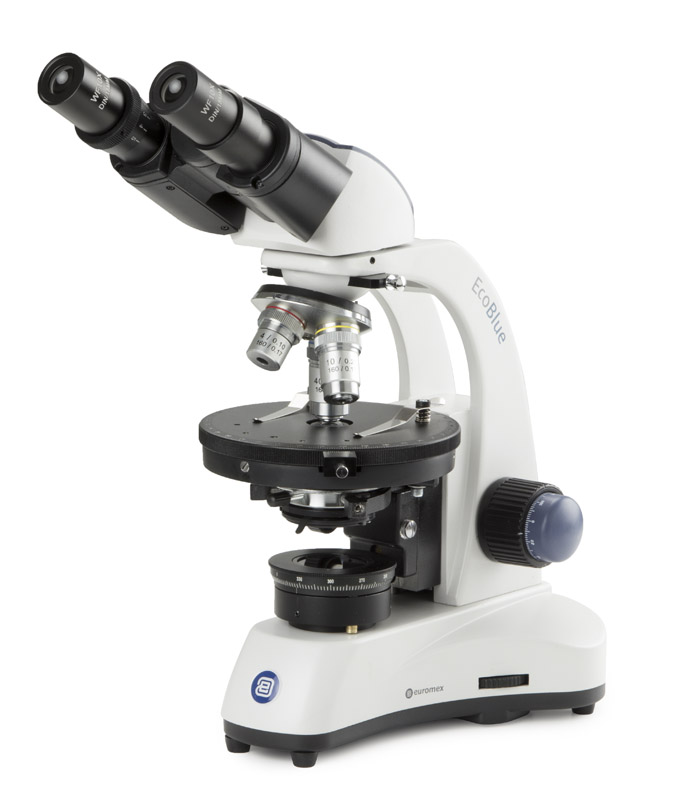

| EC.1002‑P‑HLED | • | (3) | • |  |
|||||||
| EC.1602‑P‑HLED | • | • | (3) | • |  |
||||||

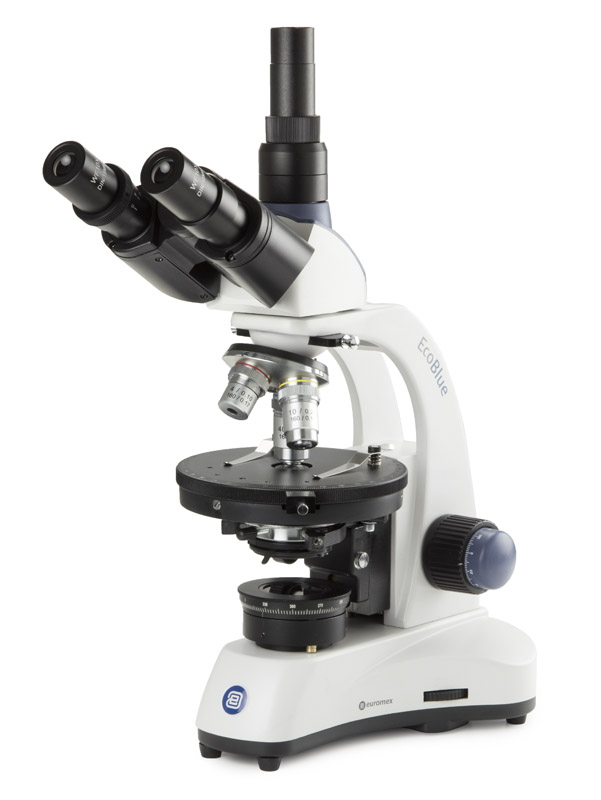

| EC.1003‑P‑HLED | • | (3) | • |  |
|||||||
| EC.1603‑P‑HLED | • | • | (3) | • |  |
(1) Integrated mechanical stage with 70 x 27 mm X-Y travel range
(2) With an external 100-240 V battery charger/mains adapter
(3) Polarization models can also be supplied with S60x or S100x objectives; replace second digit of model number with resp. 6 or 1, e.g. EC.1602-P-HLED, EC.1103-P-HLED, etc
$$$$$
EYEPIECE(S)
Wide field WF 10x/18 mm eyepiece with pointer. The eyepieces of the binocular and trinocular models are supplied without pointer
HEAD
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable
• Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
• The EcoBlue can also be supplied with a discussion head
NOSEPIECE
• Revolving nosepiece for four objectives on ball bearings
• Models for polarization are supplied with swing-out analyzer
OBJECTIVES
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 objectives
• Models EC.1151, EC.1152 and EC.1153 also have an S100x oil immersion objective
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

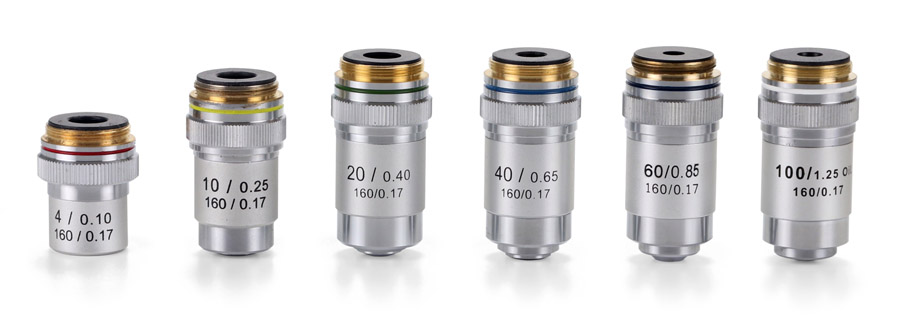

(Photo: EC.7004, EC.7010, EC.7020, EC.7040, EC.7060, EC.7000)
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective
STAGES
• Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available)
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps
CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment
ILLUMINATION
• Monocular models are supplied with a 1 W LED illumination with integrated power supply
• Binocular and trinocular models are supplied with an adjustable 1 W NeoLED™ illumination system for increased light output
• Models EC.1151, EC.1152, EC.1153, EC.1652 and EC.1653 are supplied with rechargeable batteries and an external 100-240 V battery charger/mains adapter
• The models for polarization come with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 V power supply. However 20 W halogen illumination is also available on special request
STORAGE AND TRANSPORTATION
from left to right: AE.9918 - AE.9912
PACKAGING
• Supplied with power cord or mains adapter-charger, dust cover, spare fuse, user manual and 5 ml immersion oil for models with an S100x objective
• Models for polarization with a halogen illumination are supplied with blue filter, models with LED illumination are supplied with white filter
• All packed in a polystyrene box
DIGITAL MODELS
CAMERA
• All the EcoBlue digital microscopes are equipped with a 5.0 MP CMOS USB-2 camera
• Maximum resolution 2560 x 1920, 24 bits color depth, up to 30 frames per second
• Delivered with the ImageFocus Plus software, USB-2 cable and a micrometer 1mm/100 slide
• Warranty for the camera is 2 years
SOFTWARE
• Delivered with ImageFocus Plus for capturing of images and videos
• The capture and analysis ImageFocus Plus software allows to save images in .jpg, .tif, .bmp or .dicom formats and videos in .avi format
• Images can be annotated and measurements can be performed on live or captured images
• Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
• A Mac OS version is also available
• Free updates can be downloaded from our website
%%%%%
