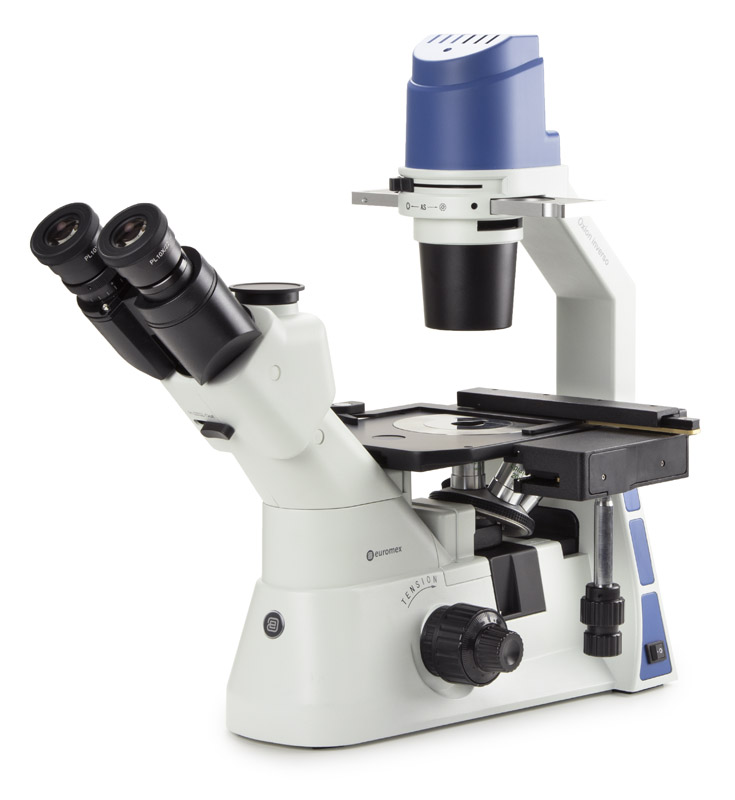

Oxion Inverso
Staffelkorting
- Buy 2 and save 5%
Product information
Handleiding
Technical specifications
accessories
Information
The inverted Oxion Inverso biological microscopes of Euromex are available for bright field, phase contrast and fluorescence applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes
The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks
Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon
Highlights
- Life Science applications
- Observation of tissue cultures, living cells
- Brightfield, phase contrast and fluorescence
- Long working distance IOS plan achromatic objectives
- Revolving quintuple nosepiece
- 5 W LED transmitted illumination
- 100 W mercury vapor lamp for fluorescence
| MODELS | LWD Plan 10x/20x/40x objectives | LWD Plan phase 10x/20x/40x objectives | LWD Plan Fluarex 10x/20x/40x objectives | LWD Plan Fluarex 10x and plan phase fluarex 20x/40x objectives | 2-position filter block | 4-position filter block | Mechanical stage | |
| OX.2003‑PL | • |  |
||||||
| OX.2053‑PL | • | • |  |
|||||
| OX.2003‑PLPH | • |  |
||||||
| OX.2053‑PLPH | • | • |  |
|||||
| OX.2253‑PLF | • | • | • |  |
||||
| OX.2453‑PLF | • | • | • |  |
||||
| OX.2253‑PLPHF | • | • | • |  |
||||
| OX.2453‑PLPHF | • | • | • |  |
Fluarex objectives are made of low-absorption glass for fluorescence applications
Fluarex is a trademark of Euromex microscopen bv
LWD = long working distance
$$$$$
EYEPIECES
Pair of DIN HWF plan 10x/22 mm eyepieces
HEADS
• Trinocular 45° inclined tubes with extended low and high positions for eyepieces
• One diopter adjustment on left eyepiece
• Interpupillary distance of 54 to 75 mm
• Trinocular head with 100-0 % and 80-20 % positions
NOSEPIECES
Revolving quintuple nosepiece on ball-bearings
OBJECTIVES FOR BRIGHTFIELD
(models OX.2003-PL and OX.2053-PL)
• Infinity color corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives
• An optional 60x/0.70 IOS objective is also available
OBJECTIVES FOR PHASE CONTRAST
(models OX.2003-PLPH and OX.2053-PLPH)
Infinity color corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives

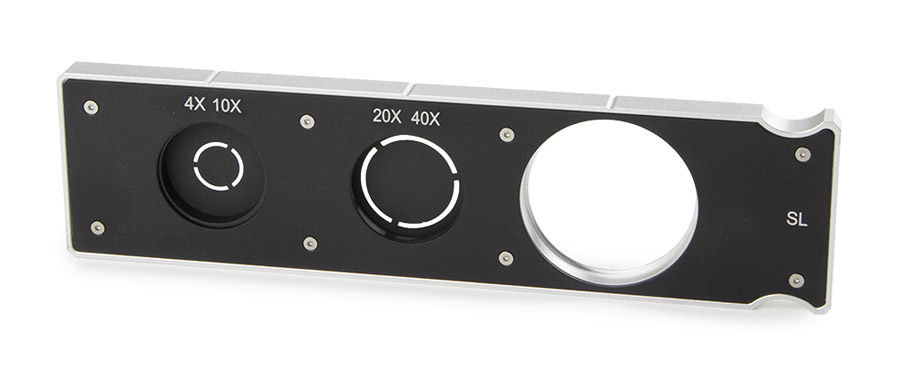

(Photo: OX.9190 Slider with 4x/10x and 20x/40x phase contrast annuli)
OBJECTIVES FOR BRIGHTFIELD AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLF and OX.2453-PLF)
• Infinity color corrected long working distance plan Fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives
• An optional plan Fluarex 60x/0.75 IOS objective is also available

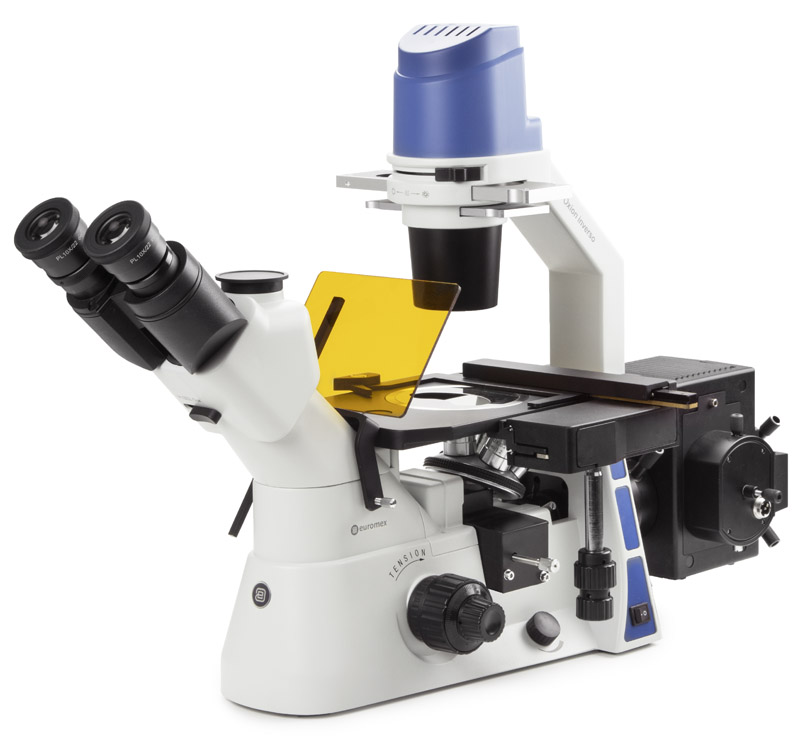

OBJECTIVES FOR PHASE CONTRAST AND FLUORESCENCE MICROSCOPY
(models OX.2253-PLPHF and OX.2453-PLPHF)
Infinity color corrected long working distance plan fluarex 10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS objectives.
All objectives corrected for 1.2 mm thickness.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
Stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:
• metallic insert for Ø 35 mm cell culture dish dishes
• 76 x 26 mm slide holder
• glass insert with hole
optional universal cell culture dish holder
(Photo: OX.9599 Universal cell structure dish holder)
CONDENSER
• N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm
• The models for the phase contrast OX.2003-PLPH, OX.2053- PLPH, OX.2253-PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings
FOCUSING ADJUSTMENT
Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment
ILLUMINATION
• Transmitted 5 W LED Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V.
• The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield
FILTERS FOR PHASE CONTRAST MODELS
Interference filter 550 nm green and blue filter, 45 mm diameter
STANDARD FLUORESCENCE FILTERS
(for fluorescence models)
The fluorescence models OX.2253-PLF and OX.2453-PLF are standard supplied with two filter sets for excitation:
- in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
- in the green spectrum, OX.9746, EX520-600 (BP) DM600 (LP) EM605-665 (BP)
The fluorescence models OX.2253-PLF and OX.2453-PLPHF equipped with a 4 positions filter rail equipped with three standard filter sets for excitation:
- in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-558 (BP)
- in the green spectrum, OX.9746, EX520-600 (BP) DM600(LP) EM605-665 (BP)
- in the UV spectrum, OX.9747, EX361-381 (BP) D415 (LP) EM435-495 (BP)
STANDARD GENERAL PURPOSE FLUORESCENCE FILTERS SETS
OX.9745 Blue excitation 465-495 nm
FITC EX465-495 (BP) DM505 (LP) EM515-558 (BP)
Also suitable for: Acridine Orange + DNA, Alexa Fluor 488™, Atto 488, Azami Green, BODIPY FL/pH7.2, Calcein, Calcium Green™-1, Cy2™, DiO, DyLight 488, EGFP, Emerald GFP, FAM, FITC, Fluo-4, GFP LysoTracker Green/pH 5.2, MitoTracker Green FM/MeOH, mWasabi, Oregon Green™ 488, SYBR® Green I, SYTO 9/DNA, ZsGreen
OX.9746 Green excitation 520-600 nm
Texas Red / mCherry / Alexa Fluor 594 EX520-600 (BP) DM600 (LP) EM605-665 (BP)
Also suitable for: Alexa Fluor 568™, Alexa Fluor 594™, CAL Fluor® Red 610, Cy3.5™, DyLight 594, FusionRed, Killer Red, mCherry, MitoTracker Red/MeOH, mKate2, mRFP1, ReAsH-CCPGCC, Rhodamine Red™-X, ROX, Sulforhodamine 101, Texas Red®, Texas Red®-X, X-rhod-1/Ca2+
OX.9747 UV excitation 361-381 nm
DAPI / Hoechst / Alexa Fluor 350 EX361-381 (BP) D415 (LP) EM435-495 (BP)
Also suitable for: Alexa Fluor 350™, Biosearch Blue, Coumarin, DAPI, DyLight 350, Hoechst 33258, LysoTracker Blue/MeOH
OX.9748 Violet excitation 361-389 nm
UV / DAPI Longpass, Calcofluor White EX 361-389 (BP) DM 415 (LP) EM 435 (LP)
PACKAGE CONTENT
• Supplied with power cord, dust cover and user manual
• Phase contrast models are supplied with green filter and alignment telescope
• Microscope supplied in a transport case
ISCI (INTRACYTOPLASMIC SPERM INJECTION) SET FOR OXION INVERSO
(Photo: OX.2003-PLPH-ISCI Oxion Inverso with ICSI equipment
for Intracytoplasmic Sperm Injection
TECHNICAL SPECIFICATIONS
• Perfect for inexperienced users in need of training practice as well as for professionals
• Complete manual system
• Large movement range
• Easy micropipette position at each time ‘Manual Home Position’
• Adjustable micropipette holder angle between 20° and 40°
• Micropipette holder fixing knob reduces vibration and easy handling of the sperm
• Easy installation and service
• 3D Hydraulic Manipulation Joysticks for smooth movement
• Pneumatic Air Injector for ICSI and HOLDING
• No service required for injector
• Identical sensitive injectors on both sides and interchangeable
• Top quality for affordable price
• Medical Device CE mark
• Movement Range: X/Y/Z: 20 mm each, 1 mm for one complete turn of the handle
• Optional heating stage with controller
(Photo: ISCI set (detail)
ISCI SET
Set includes two 3D hydraulic joysticks, two pipette setup mechanisms, one connection bar with moving handle, two air injectors with tubing and pen type micromanipulation, pipette holder, two metal plates for injectors, one set of Allen wrenches, one ruler for mechanic home position adjustment. Unit is packed in a solid carry case
HEATING STAGE
• Heating glass stage for Euromex microscope stage with 110 mm circular hole
• The glass plate fits the circular opening of the X-Y stage and enables a flat glass object-plate with constant temperature
• Aluminium frame for superior resistance and flatness
• Glass thickness 0.5 mm. Plate diameter 110 mm
CONTROLLER
• 2-Channel Temperature Controller with touchscreen interface
• One controller can control up to two devices
• External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices
• On-board data logging allows to record temperature as a function of time and to log calibration events and alarms
• The password protected controller is equipped with routines to re-calibrate the sensors against certified thermometers
FEATURES
•Temperature range: from ambient to 60°C
• Temperature accuracy on specimen: ± 0.3°C
• 4.3’’ touch screen interface
• External Temperature sensor
• On-board Data logging to USB drive
• Alarm buzzer and External Alarm Connector
• One controller can control up to two devices
• Self calibration routines enable high temperature accuracy
%%%%%
 |
PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox |
 |
PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per pack |
 |
PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per pack |
 |
OX.3010 Aluminium case for Oxion |
 |
AE.3183 Phase Contrast set incl. Zernike disc condenser with three phase rings and one darkfield position, infinity corrected plan phase PHPL 10/S40/S100x objectives |
 |
AE.3184 Phase Contrast set incl. Zernike disc condenser with four phase rings and infinity corrected plan phase PHPL 10/20/S40/S100x objectives |
 |
AE.3186 Slider phase contrast kit with plan phase 10x/20x/40x/S100x oil objectives and two sliders with phase contrast rings for PLPH 10x/S40x and 20x/S100x objectives |
 |
AE.3210 HWF 10x/22 mm eyepiece |
 |
AE.3215 HWF 15x/16 mm eyepiece |
 |
AE.3223 HWF 10w/22mm eyepiece with 10mm/100 micrometer reticule |
 |
AE.3225 Pair of eyecups |
 |
AE.3160 Infinity semi plan SMP 4x/0.10 IOS objective. Working distance 21 mm |
 |
AE.3162 Infinity semi plan SMP 10x/0.25 IOS objective . Working distance 5.95 mm |
 |
AE.3270 Infinity semi plan SMP S100x/1.25 oil immersion IOS objective. Working distance 0.36 mm |
 |
AE.3102 Infinity plan PL 2x/0.06 IOS objective |
 |
AE.3104 Infinity plan PL 4x/0.10 IOS objective. Working distance 11.9 mm |
 |
AE.3106 Infinity plan PL 10x/0.25 IOS objective. Working distance 12.1 mm |
 |
AE.3108 Infinity plan PL 20x/0.40 IOS objective. Working distance 1.5 mm |
 |
AE.3110 Infinity plan PL S40x/0.65 IOS objective. Working distance 0.36 mm |
| Click here for all accessories |
