NexiusZoom (EVO) 0,67-4,5 (WF10x/22mm)

Quantity
Product
Price
Details
NZ.1902‑P
€703,80 Excl. tax
€851,60 Incl. tax
Article codeNZ.1902‑P
SKUNZ.1902‑P
Delivery3-4 days
NZ.1902‑PG
€882,05 Excl. tax
€1.067,28 Incl. tax
Article codeNZ.1902‑PG
SKUNZ.1902‑PG
Delivery3-4 days
NZ.1902‑M
€1.282,25 Excl. tax
€1.551,52 Incl. tax
Article codeNZ.1902‑M
SKUNZ.1902‑M
Delivery3-4 days
NZ.1902‑S
€733,70 Excl. tax
€887,78 Incl. tax
Article codeNZ.1902‑S
SKUNZ.1902‑S
Delivery3-4 days
NZ.1902‑U
€916,55 Excl. tax
€1.109,03 Incl. tax
Article codeNZ.1902‑U
SKUNZ.1902‑U
Delivery3-4 days
NZ.1902‑B
€1.012,00 Excl. tax
€1.224,52 Incl. tax
Article codeNZ.1902‑B
SKUNZ.1902‑B
Delivery3-4 days
NZ.1902‑BC
€987,85 Excl. tax
€1.195,30 Incl. tax
Article codeNZ.1902‑BC
SKUNZ.1902‑BC
Delivery3-4 days
NZ.1902‑A
€1.244,30 Excl. tax
€1.505,60 Incl. tax
Article codeNZ.1902‑A
SKUNZ.1902‑A
Delivery3-4 days
NZ.1902‑AP
€1.515,70 Excl. tax
€1.834,00 Incl. tax
Article codeNZ.1902‑AP
SKUNZ.1902‑AP
Delivery3-4 days
NZ.1903‑P
€773,95 Excl. tax
€936,48 Incl. tax
Article codeNZ.1903‑P
SKUNZ.1903‑P
Delivery3-4 days
NZ.1903‑PG
€987,85 Excl. tax
€1.195,30 Incl. tax
Article codeNZ.1903‑PG
SKUNZ.1903‑PG
Delivery3-4 days
NZ.1903‑M
€1.432,90 Excl. tax
€1.733,81 Incl. tax
Article codeNZ.1903‑M
SKUNZ.1903‑M
Delivery3-4 days
NZ.1903‑S
€805,00 Excl. tax
€974,05 Incl. tax
Article codeNZ.1903‑S
SKUNZ.1903‑S
Delivery3-4 days
NZ.1903‑U
€1.008,55 Excl. tax
€1.220,35 Incl. tax
Article codeNZ.1903‑U
SKUNZ.1903‑U
Delivery3-4 days
NZ.1903‑B
€1.140,80 Excl. tax
€1.380,37 Incl. tax
Article codeNZ.1903‑B
SKUNZ.1903‑B
Delivery3-4 days
NZ.1903‑BC
€1.140,80 Excl. tax
€1.380,37 Incl. tax
Article codeNZ.1903‑BC
SKUNZ.1903‑BC
Delivery3-4 days
NZ.1903‑A
€1.367,35 Excl. tax
€1.654,49 Incl. tax
Article codeNZ.1903‑A
SKUNZ.1903‑A
Delivery3-4 days
NZ.1903‑AP
€1.666,35 Excl. tax
€2.016,28 Incl. tax
Article codeNZ.1903‑AP
SKUNZ.1903‑AP
Delivery3-4 days
Ordered before counting..., delivered tomorrow
All in cart
Product information
Handleiding
Technical specifications
Information

Highlights

  • Binocular and trinocular heads with HWF 10x/22 mm or HWF 10x/23 mm eyepieces (EVO)
  • Zoom ratio 1: 6.7, 6.7x to 45x or 1: 8.4, 6.5x to 55x
  • Ergonomic stands
  • Double 3 W LED illumination
  • Configurations up to 220x magnification
  • Large working distance
  • ESD safe models available
  • 10 years warranty
MODELS Binocular Trinocular Pillar stand
(-P)
Rack & pinion stand
(-S)

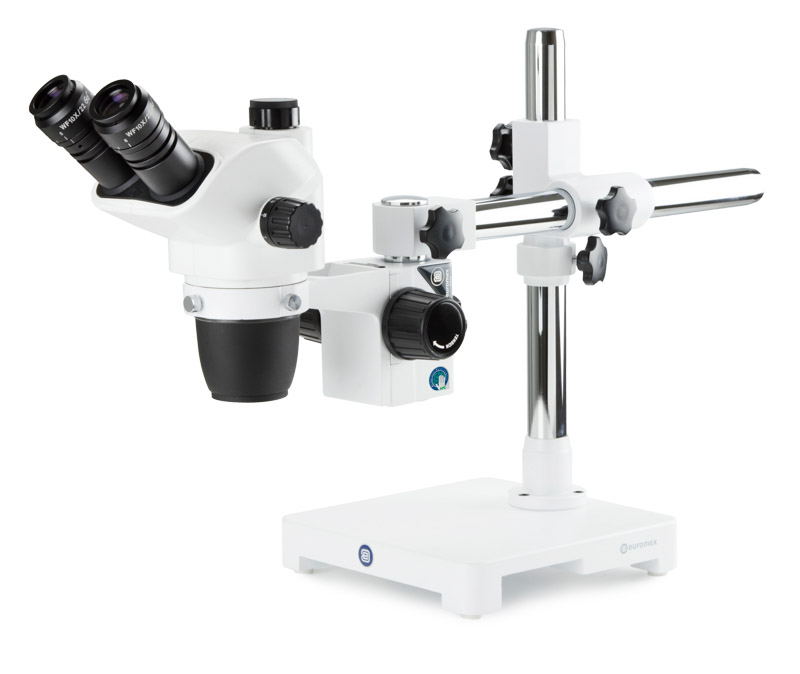

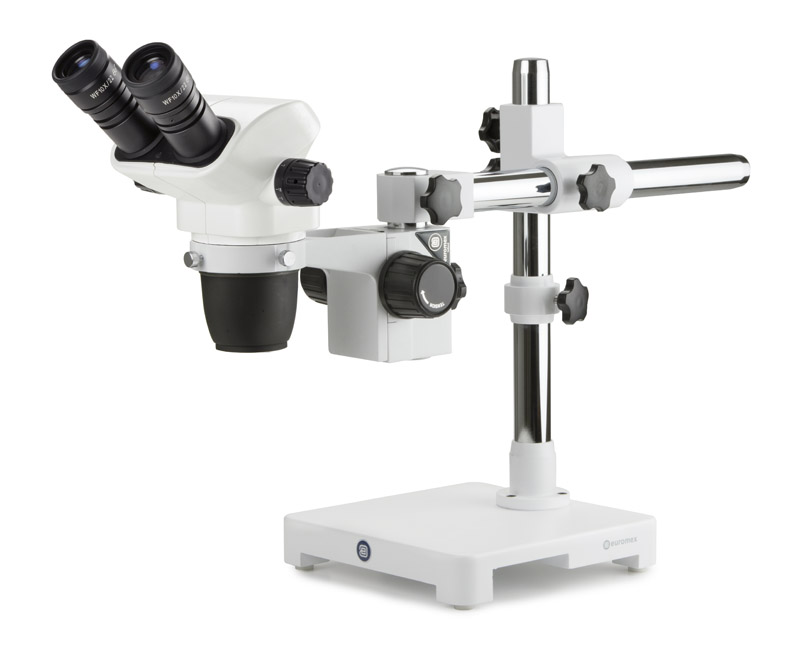

Universal stand
(-U)

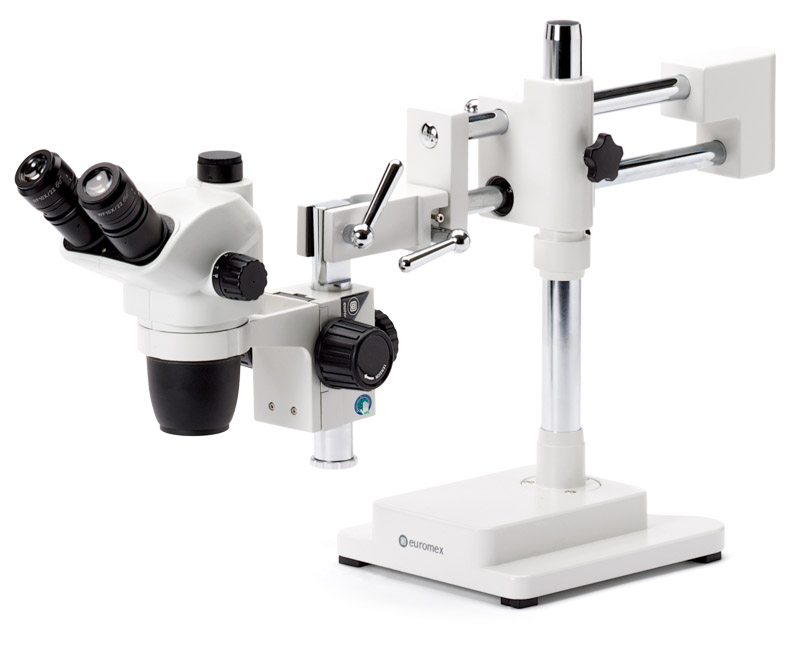

Boom stand on heavy base plate
(-B)

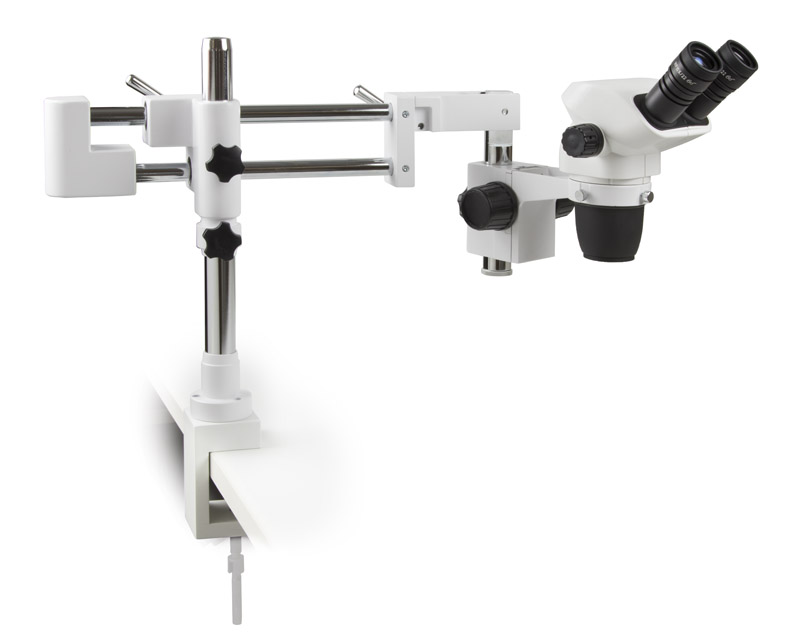

Boom stand on table clamp
(-BC)

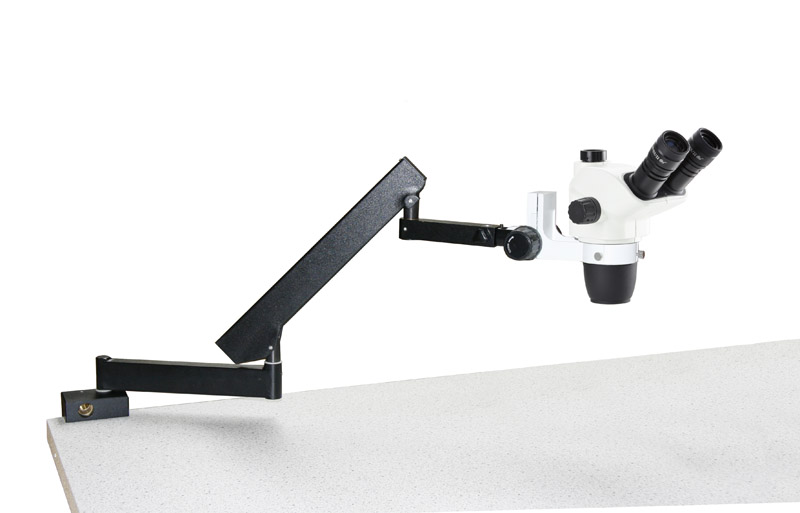

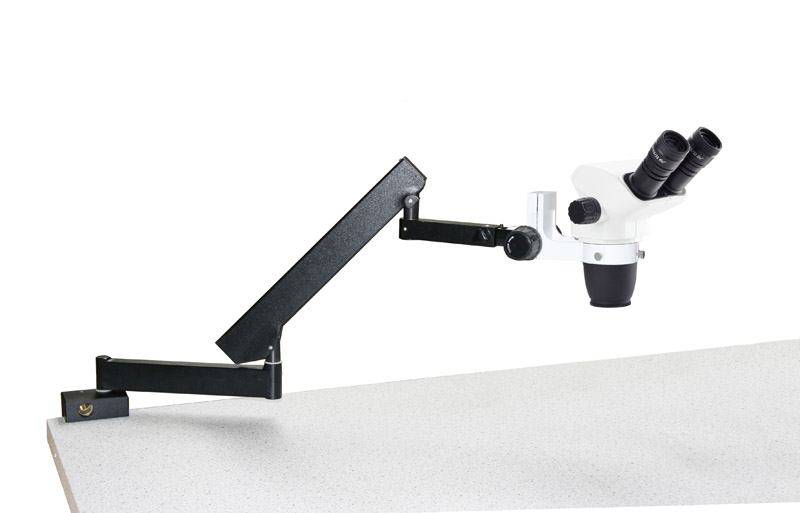

Articulated arm stand on table clamp
(-A)
Articulated arm stand on heavy base plate
(-AP)

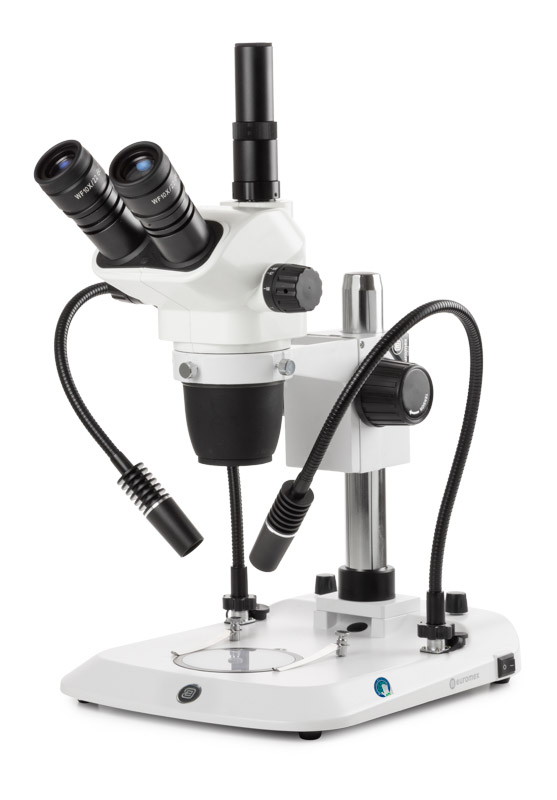

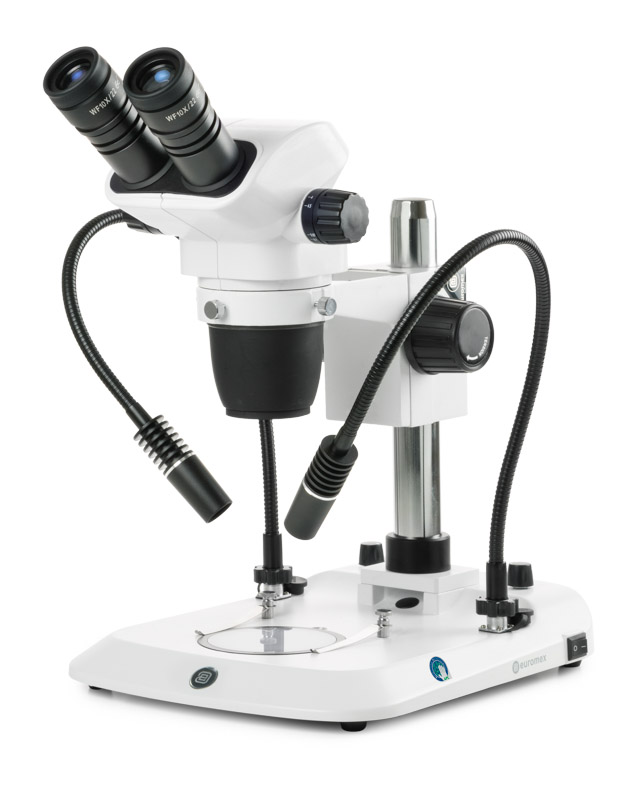

Gooseneck dual LED
(-PG)

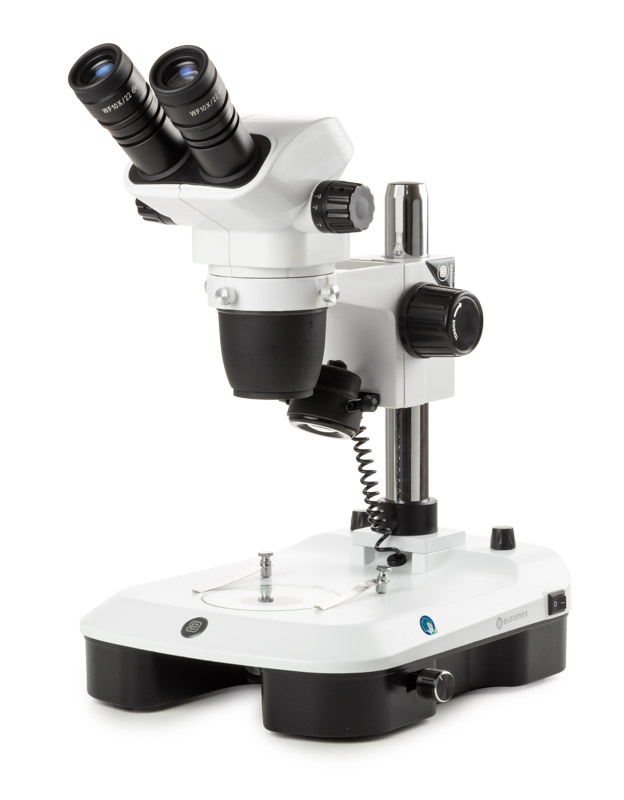

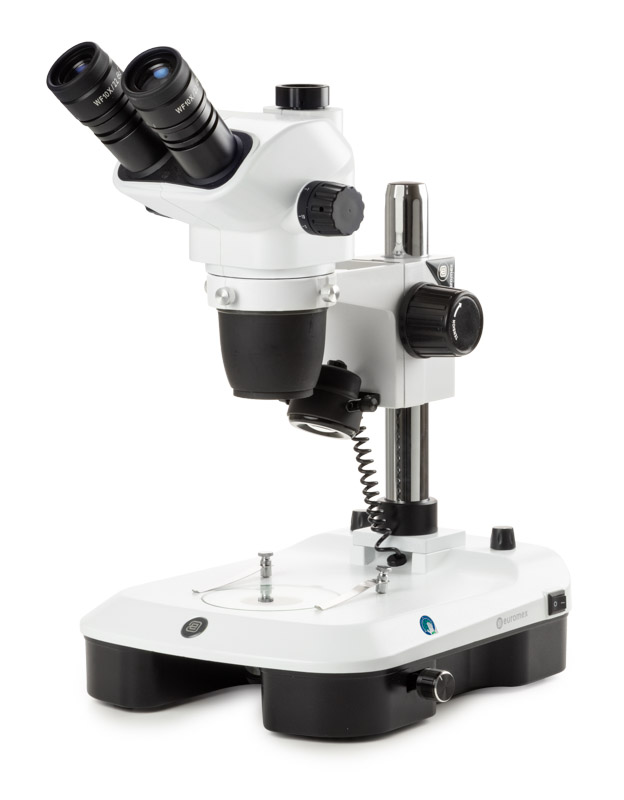

Mirror LED
(-M)
Weight(kg)
NZ.1902‑P                   5.0
NZ.1902‑PG                 5.1
NZ.1902‑M                 4.9
NZ.1902‑S                   4.9
NZ.1902‑U                   15.6
NZ.1902‑B                   22.1
NZ.1902‑BC                   10.5
NZ.1902‑A                   8.6
NZ.1902‑AP                   20.7
NZ.1903‑P                   5.2
NZ.1903‑PG                 5.3
NZ.1903‑M                 5.1
NZ.1903‑S                   5.1
NZ.1903‑U                   15.7
NZ.1903‑B                   22.2
NZ.1903‑BC                   10.6
NZ.1903‑A                   8.7
NZ.1903‑AP                   20.8



$$$$$

EYEPIECES
The standard NexiusZoom is supplied with a pair of HWF 10x/22 mm eyepieces
The NexiusZoom EVO is supplied with a pair of HWF 10x/23 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
Interpupillary distance adjustable between 54 mm and 75 mm. Trinocular head is supplied with a fixed light path beamsplitter (50:50).
The NexiusZoom EVO models are now equipped with click-stops

OBJECTIVES
The standard NexiusZoom is supplied with a 1:6.7 zoom objective with 0.67x to 4.5x magnifications, a field of view from 33 mm to 4.9 mm. Working distance 110 mm

The NexiusZoom EVO is supplied with a 1:8.4 zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. WD 110 mm

Auxiliary lenses 0.3x, 0.5x, 0.75x, 1.5x and 2.0x are available for the standard NexiusZoom and for the NexiusZoom EVO

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

POLARIZATION
The NexiusZoom can be supplied with an optional 360° rotatable round stage with built-in polarization filter and/or an optional rotatable analyzer filter in mount to be screwed under the objective

MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces of the standard NexiusZoom

Zoom
indication

Aux. lens 0.3x
WD 287 mm

Aux. lens 0.4x
WD 220 mm

Aux. lens 0.5x
WD 183 mm

Aux. lens 0.75x
WD 105 mm

Objective 1x
(standard)
WD 110 mm

Aux. lens 1.5x
WD 53 mm

Aux. lens 2x
WD 34 mm



Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

Total
mag.

F.o.v.
in mm

0.67

2

109.5

2.7

82.1

3.35

65.7

5.0

43.8

6.7

32.8

10.1

21.9

13.4

16.4

0.7

2.1

104.8

2.8

78.6

3.5

62.9

5.3

41.9

7.0

31.4

10.5

21.0

14.0

15.7

0.8

2.4

91.7

3.2

68.8

4.0

55.0

6.0

36.7

8.0

27.5

12.0

18.3

16.0

13.8

1.0

3

73.3

4

55.0

5.0

44.0

7.5

29.3

10.0

22.0

15.0

14.7

20.0

11.0

1.5

4.5

48.9

6

36.7

7.5

29.3

11.3

19.6

15.0

14.7

22.5

9.8

30.0

7.3

2.0

6

36.7

8

27.5

10.0

22.0

15.0

14.7

20.0

11.0

30.0

7.3

40.0

5.5

3.0

9

24.4

12

18.3

15.0

14.7

22.5

9.8

30.0

7.3

45.0

4.9

60.0

3.7

4.0

12

18.3

16

13.8

20.0

11.0

30.0

7.3

40.0

5.5

60.0

3.7

80.0

2.8

4.5

13.5

16.3

18

12.2

22.5

9.8

33.8

6.5

45.0

4.9

67.5

3.3

90.0

2.4

Aux. = Auxiliary
Total mag. = Total magnification
F.o.v. = Field of view

Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo

Zoom
indication

Auxiliary lens
0.3x
WD 278 mm

Auxiliary lens
0.4x
WD 220 mm

Auxiliary lens
0.5x
WD 183 mm

Auxiliary lens
0.75x
WD 105 mm

Objective 1x
(standard)
WD 110 mm

Auxiliary lens
1.5x
WD 53 mm

Auxiliary lens 2x
WD 34 mm



Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

Total
mag.

FoV
in mm

0.65

1.95

117.9

2.6

88.5

3.25

70.8

4.9

47.2

6.5

35.4

9.8

23.6

13.0

17.7

1.0

3.0

76.7

4.0

57.5

5.0

46.0

7.5

30.7

10.0

23.0

15.0

15.3

20.0

11.5

1.5

4.5

51.1

6.0

38.3

7.5

30.7

11.3

20.4

15.0

15.3

22.5

10.2

30.0

7.7

2.0

6.0

38.3

8.0

28.8

10.0

23.0

15.0

15.3

20.0

11.5

30.0

7.7

40.0

5.8

2.5

7.5

30.7

10.0

23.0

12.5

18.4

18.8

12.3

25.0

9.2

37.5

6.1

50.0

4.6

3.0

9.0

25.6

12.0

19.2

15.0

15.3

22.5

10.2

30.0

7.7

45.0

5.1

60.0

3.8

3.5

10.5

21.9

14.0

16.4

17.5

13.1

26.3

8.8

35.0

6.6

52.5

4.4

70.0

3.3

4.0

12.0

19.2

16.0

14.4

20.0

11.5

30.0

7.7

40.0

5.8

60.0

3.8

80.0

2..9

4.5

13.5

17.0

18.0

12.8

22.5

10.2

33.8

6.8

45.0

5.1

67.5

3.4

90.0

2.6

5.0

15.0

15.3

20.0

11.5

25.0

9.2

37.5

6.1

50.0

4.6

75.0

3.1

100.0

2.3

5.5

16.5

13.9

22.0

10.5

27.5

8.4

41.3

5.6

55.0

4.2

82.5

2.8

110.0

2.1



COMPATIBILITY TABLE AUXILIARY LENSES

MODELS

0.3x
Magnification

0.4x
Magnification

0.5x
Magnification

0.75x
Magnification

1.5x
Magnification

2x
Magnification

NZ.9000/9005





NexiusZoom-P, -M, -PG





NexiusZoom-P-ESD





NexiusZoom-S









NexiusZoom-S-ESD









NexiusZoom-A, -AP

NexiusZoom-U, -B, -BC







NexiusZoom-U-ESD, -B-ESD







STAND
• Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)
• Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)
• Ergonomic pillar stand with rotating mirror and 3W LED transmitted and incident illuminations (-M stand)
• Ergonomically designed universal or boom stands, without illumination (-U, -B and BC stands)
• Articulated arm stand for table mounting or with heavy desktop stand, both without head holder, without illumination (-A and -AP stands)

All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

 NZ.9005_1NZ.9000_B_2

NZ.9005 and NZ.9000

STAGEUnknown
NEW:
 180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope.
Only available with new microscopes (due to fixing), so it has to be ordered with the purchase of a microscope
(See picture to the left: NZ.9505)

ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box

PRODUCT VIDEO
Check out the product video below and learn more about this microscope
