Oxion Inverso materials science
Product information
Handleiding
Technical specifications
accessories
Information

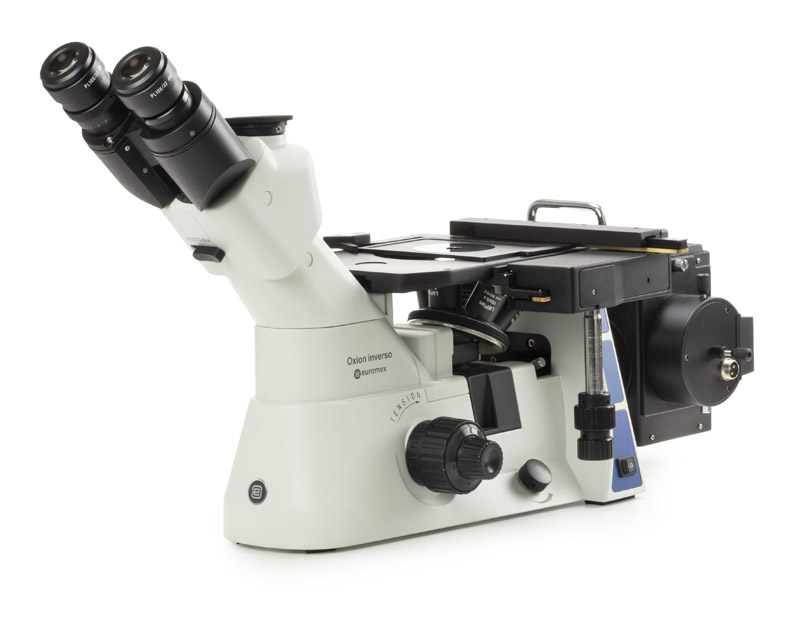

The Oxion Inverso inverted microscopes for material science are intensively used for observation of large pieces of material made from metal, wood, plastics and more
The Oxion Inverso is available with a powerful 50 W halogen brightfield contrast illumination and a large mechanical stage. The polarization and color filters makes this instrument suitable for a wide variety of applications
Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon
Highlights
- Observation of all types of materials
- Brightfield with polarization
- Long working IOS plan achromatic objectives
- Long working IOS plan semi apochromatic objectives
- Revolving quintuple nosepiece
- 50 W halogen Köhler illumination
- Materials Science applications
| MODELS | LWD plan 5x/10x/20x objectives | LWD plan apochromatic 50x objective | LWD plan apochromatic 100x objective | Mechanical stage | |
| OX.2653‑PLM | • | • | • |  |
|
| OX.2153‑PLM | • | • | • | • |  |
LWD= long working distance
$$$$$
EYEPIECES
Pair of DIN HWF Plan 10x/22 mm eyepieces
NOSEPIECES
Revolving quintuple nosepiece on ball-bearings
HEAD
•Trinocular 45° inclined tubes with extended low and high positions.
• One diopter adjustment on left eyepiece. Interpupillary distance of 54 to 75 mm.
• Trinocular head with light path selector 100-0/80-20
OBJECTIVES
Infinity color corrected long working distance 5x/0.15, 10x/0.14, 20x/0.45 plan achromatic IOS objectives and plan semi apochromatic S50x/0.55 and S100x/0.80 IOS objectives. No cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light troughout
STAGE
Large stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage,
delivered with:
- metallic insert standard with Ø 12 mm diameter hole and Ø 25 mm diameter hole
- metallic insert with hole for mechanical stage

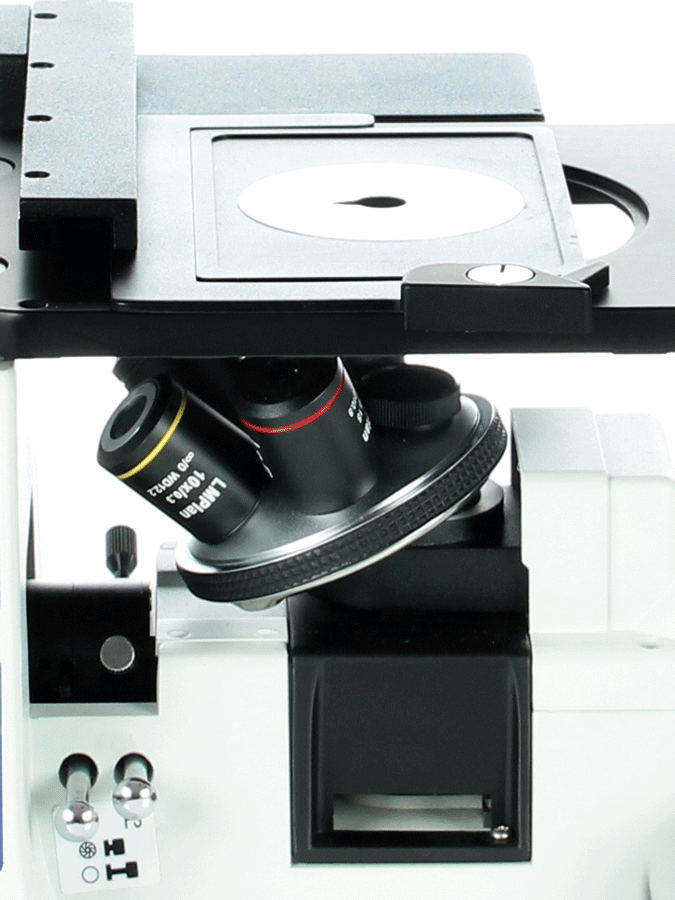

(Photo: Large stage with X-Y mechanical stage)
CONDENSER
Abbe condenser with iris diaphragm
FOCUSING
Coaxial 25 mm coarse and fine adjustments, 2 µm precision and with friction adjustment
ILLUMINATION
Reflected Köhler 50 W halogen Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V
POLARIZATION
Standard polarization filter and 360° rotating analyzer
FILTERS
Blue and green filter mounted in slider, that can be inserted at the back of the illumination attachment. Polarization filter in slider, to be inserted under nosepiece
PACKAGE CONTENT
Supplied with power cord, dust cover, blue and green filters and user manual
%%%%%
 |
PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key, 1.5, 2, 2.5 mm, lens cleaning fluid 20 ml, cleaning cloth 140 x 140 mm, 100 pcs Lens tissue sheets, tube of maintenance grease, 10 ml bottle of oil, packed in a nice toolbox |
 |
PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per pack |
 |
PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per pack |
 |
OX.3010 Aluminium case for Oxion |
 |
AE.3183 Phase Contrast set incl. Zernike disc condenser with three phase rings and one darkfield position, infinity corrected plan phase PHPL 10/S40/S100x objectives |
 |
AE.3184 Phase Contrast set incl. Zernike disc condenser with four phase rings and infinity corrected plan phase PHPL 10/20/S40/S100x objectives |
 |
AE.3186 Slider phase contrast kit with plan phase 10x/20x/40x/S100x oil objectives and two sliders with phase contrast rings for PLPH 10x/S40x and 20x/S100x objectives |
 |
AE.3210 HWF 10x/22 mm eyepiece |
 |
AE.3215 HWF 15x/16 mm eyepiece |
 |
AE.3223 HWF 10w/22mm eyepiece with 10mm/100 micrometer reticule |
 |
AE.3225 Pair of eyecups |
 |
AE.3160 Infinity semi plan SMP 4x/0.10 IOS objective. Working distance 21 mm |
 |
AE.3162 Infinity semi plan SMP 10x/0.25 IOS objective . Working distance 5.95 mm |
 |
AE.3270 Infinity semi plan SMP S100x/1.25 oil immersion IOS objective. Working distance 0.36 mm |
 |
AE.3102 Infinity plan PL 2x/0.06 IOS objective |
 |
AE.3104 Infinity plan PL 4x/0.10 IOS objective. Working distance 11.9 mm |
 |
AE.3106 Infinity plan PL 10x/0.25 IOS objective. Working distance 12.1 mm |
 |
AE.3108 Infinity plan PL 20x/0.40 IOS objective. Working distance 1.5 mm |
 |
AE.3110 Infinity plan PL S40x/0.65 IOS objective. Working distance 0.36 mm |
| Voor alle accessoires klik hier |
