Microscopes for materials science applications have the specific objectives and other equipment like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes
iScope for asbestos research
The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos indentification
Icons are used to indicate the several functions of a microscope.
Click and find more details about the meaning of each icon
Highlights
- Binocular and trinocular models
- HWF 12.5/15 mm eyepieces
- Reversed quintuple revolving nosepiece
- Infinity corrected IOS objectives
- 216 x 150 mm mechanical rackless stage
- Integrated 79 x 52 mm mechanical stage
- Diascopic 3 W NeoLED Köhler illumination
- iCare sensor for energy saving
- CSS - Cable Storage System
| MODELS | Binocular | Trinocular | HWF 12.5x/15 mm | HWF 12.5x/15 mm, with Walton-Bracket | Plan PLi 4/10x objectives * | Plan phase PLPHi S40x objectives | Phase contrast condenser | Mechanical rackless stage | iCare Sensor | Köhler LED | |
| IS.1052‑PLAi | • | • | • | • | • | • | 187/230 x 140 mm | • | • |  |
|

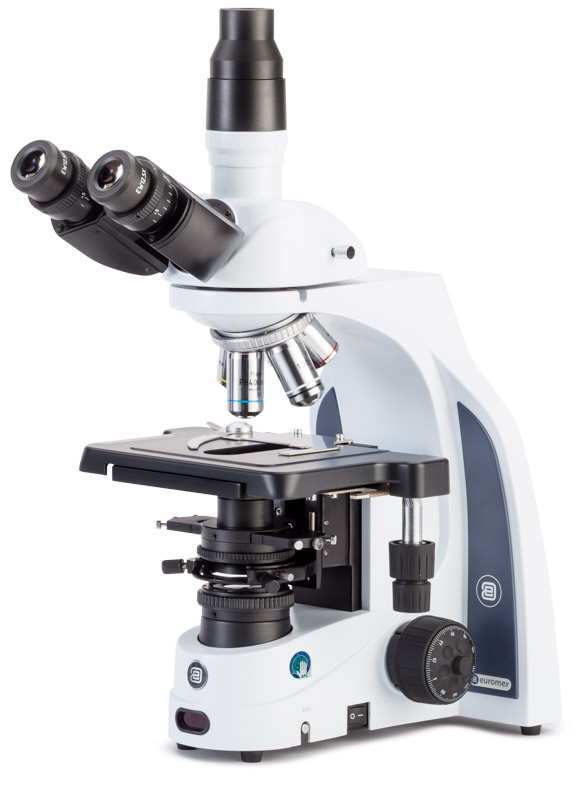

| IS.1053‑PLAi | • | • | • | • | • | • | 187/230 x 140 mm | • | • |  |
* Cover glass correction
$$$$$
EYEPIECES
Supplied with HWF 12.5x/15 mm (Ø 30 mm tube) eyepieces, one includes a Walton-Beckett reticle
HEAD
• Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
• The trinocular head 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x/0.35x, 0.5x or 0.75x objective
NOSEPIECE
Revolving quintuple reversed nosepiece on ball bearings
OBJECTIVES
Plan PLi infinity corrected objectives for asbestos research microscopes except the S40x which is a plan phase contrast PLPHi infinity corrected objective
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
|
Plan PLi IOS |
4x/0.10 |
10x/0.25 |
20x/0.401) |
PLPHi S40x/0.65 |
S60x/0.851) |
S100x/1.251) |
1) optional
STAGES
The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer working
CONDENSER
Height adjustable Abbe 1.25 phase contrast condenser supplied with slider with 10/40 annuli, green filter and alignment telescope
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustment is equipped with friction control
ICARE SENSOR
• The unique iCare Sensor is developed to avoid unnecessary loss of energy
• The illumination of the microscope automatically switches off shortly after microscopists step away from their position
CSS – CABLE STORAGE SYSTEM
• iScope® allows users to easily insert the power cable into the backside of the instrument, which enables easy storage
• The integrated carrying grip at the back of the microscope ensure the safe transportation of the microscope
PACKAGE CONTENT
Supplied with green filter, phase centering telescope, power cord, dust cover, spare fuse where available and user manual. All packed in polystyrene boxes
%%%%%
 |
PB.5276 Microscoop-onderhoudsset, 16 onderdelen: schoonmaakpenseel, 6-delige schroevendraaiersset, blaasbalgje, 3-delige inbusset (1,5, 2, 2,5 mm), lensreinigingsvloeistof 20 ml, reinigingsdoek 140 x 140 mm, 100 stuks lenstissues, tube onderhoudsvet, 10 ml fles olie, verpakt in een overzichtelijke opbergdoos |
 |
PB.5157-B Objectglaasjes 76 x 26 mm, wit glas, kanten geslepen. Een kant blauw. Per 50 stuks verpakt |
 |
PB.5157-W Objectglaasjes 76 x 26 mm, wit glas, kanten geslepen. Per 50 stuks verpakt |
 |
IS.5700 Ergonomische kantelbare kop 5 tot 35°. Voor iScope oneindig gecorrigeerde optische systemen |
 |
IS.6010 EWF 10x/20 mm oculair, Ø 23,2 mm tubus |
 |
IS.6010-C EWF 10x/20 mm oculair met kruisdraad, Ø 23,2 mm tubus |
 |
IS.6010-P EWF 10x/20 mm oculair met aanwijsnaald, Ø 23.2 mm tubus |
 |
IS.6010-CM EWF 10x/20 mm oculair met 10/100 micrometer en kruisdraad, Ø 23,2 mm tubus |
 |
IS.6015 WF 15x/16 mm oculair, Ø 23,2 mm tubus |
|
IS.6020 WF 20x/12 mm oculair, Ø 23,2 mm tubus |
 |
IS.6099 Paar oogschelpen, Ø 23,2 mm tubus |
 |
IS.6210 EWF 10x/22 mm oculair, Ø 30 mm tubus |
 |
IS.6210-C EWF 10x/22 mm oculair met 10/100 micrometer en kruisdraad, Ø 30 mm tubus |
 |
IS.6210-P EWF 10x/22 mm oculair met 10/100 micrometer en kruisdraad, Ø 30 mm tubus |
 |
IS.6210-CM EWF 10x/22 mm oculair met 10/100 micrometer en kruisdraad, Ø 30 mm tubus |
 |
IS.6212 WF 12,5x/15 mm oculair, Ø 30 mm tubus |
 |
IS.6215 WF 15x/16 mm oculair, Ø 30 mm tubus |
 |
IS.6220 WF 20x/12 mm oculair, Ø 30 mm tubus |
 |
IS.6299 Paar oogschelpen, Ø 30 mm tubus |
 |
IS.7104 E-plan EPL 4x/0,10 objectief |
 |
IS.7110 E-plan EPL 10x/0,25 objectief |
 |
IS.7120 E-plan EPL 20x/0,40 objectief |
 |
IS.7140 E-plan EPL S40x/0,65 objectief |
 |
IS.7160 E-plan EPL S60x/0,85 objectief |
 |
IS.7100 E-plan EPL S100x/1,25 objectief |
 |
IS.7710 Plan PLPH 10x/0,25 fasecontrast objectief |
 |
IS.7720 Plan PLPH 20x/0,40 fasecontrast objectief |
 |
IS.7740 Plan PLPH S40x/0,65 fasecontrast objectief |
 |
IS.7700 Plan PLPH S100x/1,25 fasecontrast objectief |
 |
IS.8804 E-plan EPLi 4x/0,10 IOS oneindig gecorrigeerd objectief |
 |
IS.8810 E-plan EPLi 10x/0,25 IOS oneindig gecorrigeerd objectief |
 |
IS.8840 E-plan EPLi S40x/0,65 IOS oneindig gecorrigeerd objectief |
 |
IS.8800 E-plan EPLi S100x/1,25 IOS oneindig gecorrigeerd objectief |
 |
IS.7202 Plan PLi 2x/0.05 IOS oneindig gecorrigeerd objectief, geen dekglascorrectie. Werkafstand 18,3mm |
 |
IS.7204 Plan PLi 4x/0,10 IOS oneindig gecorrigeerd objectief |
 |
IS.7210 Plan PLi 10x/0,25 IOS oneindig gecorrigeerd objectief |
 |
IS.7220 Plan PLi 20x/0,40 IOS oneindig gecorrigeerd objectief |
 |
IS.7240 Plan PLi S40x/0,65 IOS oneindig gecorrigeerd objectief |
 |
IS.7260 Plan PLi S60x/0,85 IOS oneindig gecorrigeerd objectief |
 |
IS.7200 Plan PLi S100x/1,25 IOS oneindig gecorrigeerd objectief |
 |
IS.7200-I Plan PLi S100x/1,25 IOS oneindig gecorrigeerd objectief met geïntergreerde irisdiafragma |
 |
IS.8910 Plan PLPHi 10x/0,25 fasecontrast IOS oneindig gecorrigeerd objectief |
 |
IS.8920 Plan PLPHi 20x/0,40 fasecontrast IOS oneindig gecorrigeerd objectief |
| Klik HIER voor alle accessoires voor IScope |
